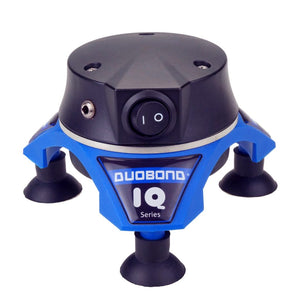

DUOBOND® IQ-r 9V Wireless LED UV-Lamp Rechargeable
Item: DA770247Rechargeable Duobond® IQ-r 9 Volt LED UV-lamp for wireless curing of Duobond® UV-resin & Impact-Filler.
The smart wireless UV curing LED lamp for Duobond® UV resin & Impact-Filler

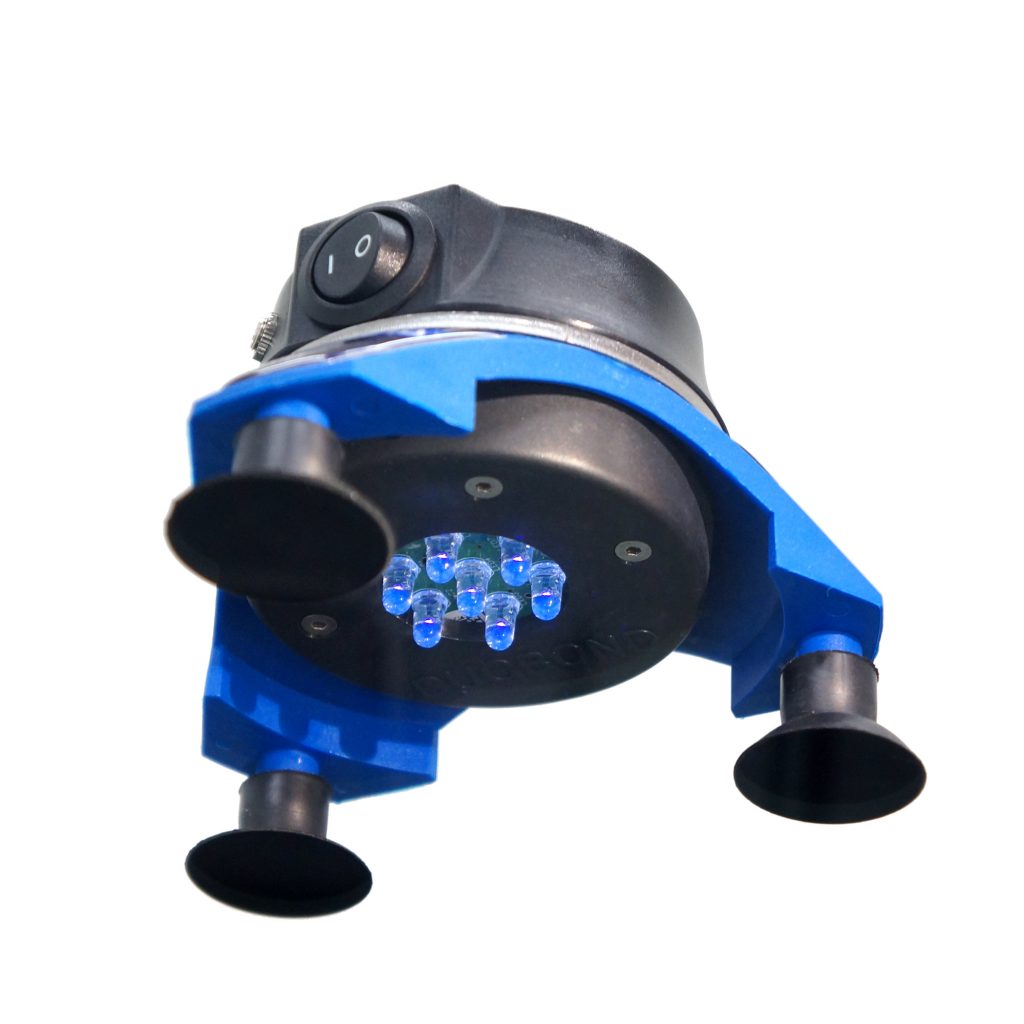

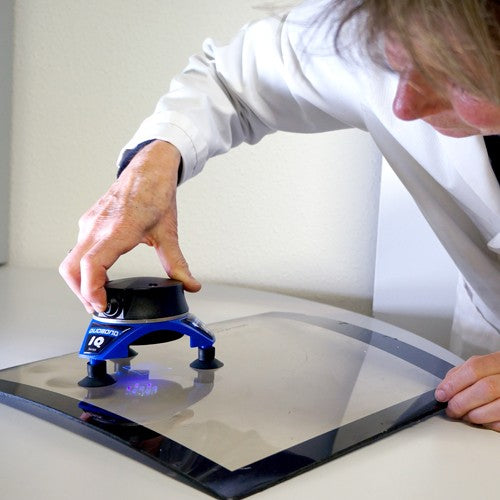

This wireless LED UV-lamp makes windscreen repair so much easier without having to navigate around cords. It also gives the technician freedom to work in any situation on site or in a workshop. The tripod setting combined with the suction caps allows it to be always fixed on the windscreen with the correct distance in relation to the beam angle of the 7 LED’s.
Optimal curing
The wavelength and amount of UV-radiation needed by the Duobond® UV-resin and Impact-filler has been the starting point of developing this UV-lamp. The requested low wavelength and optimal design of the power supply on the circuit board prevents any heat production. Heat production has a negative influence on the refraction index and quality of the cured UV-resin, which makes the repair more noticeable and decreases the shear strength of the repair. Heat also decreases the lifespan of a circuit board itself.
The built-in buzzer produces an audible warning when the LED UV-lamp is on. A signal sounds every ten seconds, and once the optimal curing time is due, the lamp switches off automatically and gives an audible signal repeatedly that it is ready. This limits the required amount of energy usage and loss of time for the technician as he/she is being notified at every step.
A standard 9V, 300NiMH battery can do up to 60 curings. Once the 9v battery has reached 6v the lamp stops working and can be recharged via the Duobond® USB charging cord. The USB charge cord runs on standard 5v USB outputs and can charge starting from 5,2v back to 9v.
Includes Duobond® IQ-r USB battery charge cable.
Weight: 0.275kg
Dimensions: 12x8cm
