DUOBOND® Iris BB9 Positioner

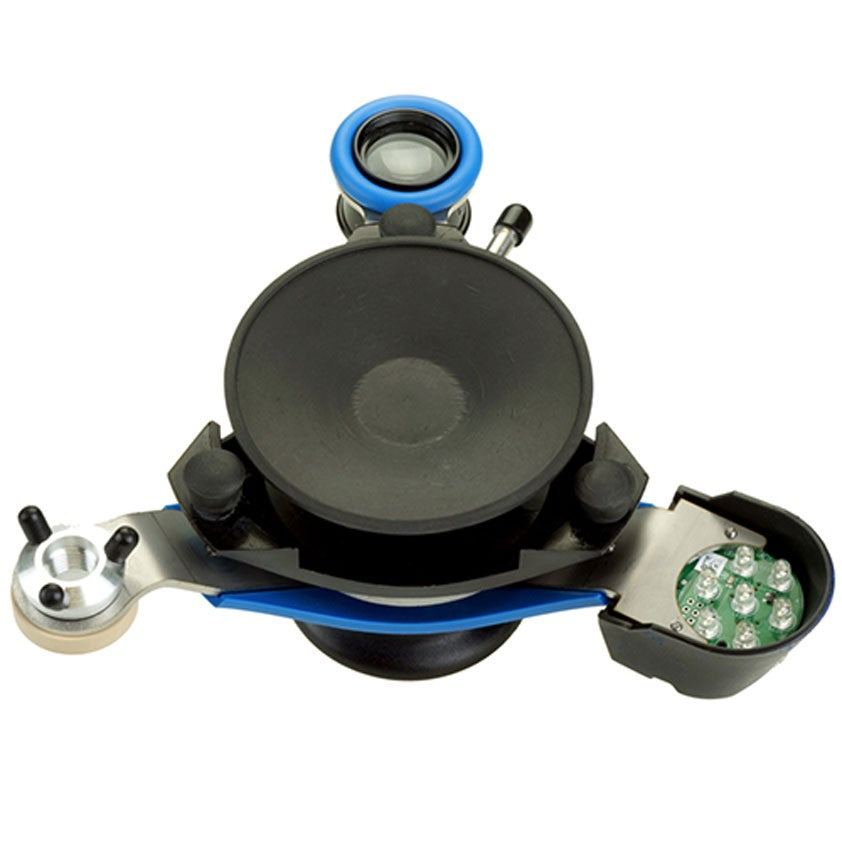

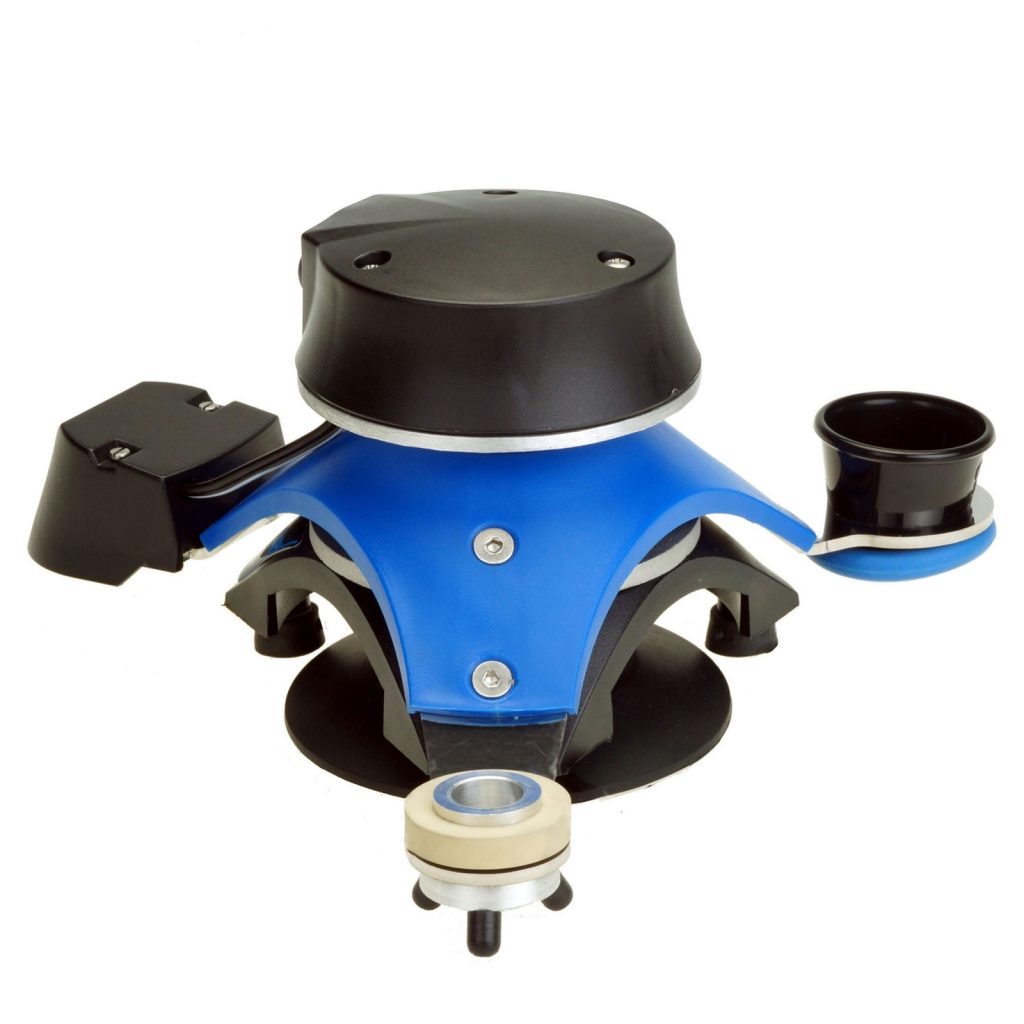

Iris is the most complete Duobond® windscreen repair bridge and offers UV curing LED lights, a sputnik for the injector and magnifier for quality inspection. It is battery powered by a 9v rechargeable battery.


Iris offers great efficiency at the highest level for every windscreen repair technician  in combination with great visibility during the repair due to the rotating platform.

Rotate to select

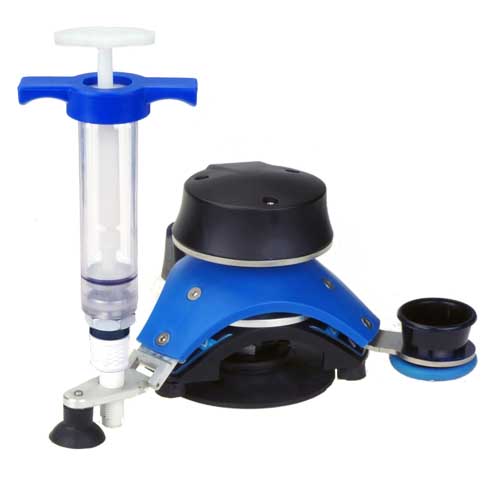

With Iris, users perform fewer operations in comparison to the traditional windscreen repair bridges. You firmly attach the platform to a car or truck windscreen using the 9.5cm suction cup in just a single action: a twist of the handle. Once attached to the windscreen, you can rotate Iris to move aside the injector and select the magnifying glass so you can check for air in the resin and then to the UV LED lamp to cure the resin. Because the three tool-holders are replaceable, new functionalities can be added to the platform in the future.

Energy efficient

The built in Iris LED UV-lamp runs on a standard rechargeable 9 volt battery and is wireless which makes windscreen repair so easy. It also gives the technician freedom to work in any location. In the rotating setting it is always positioned correctly above the repair on the windscreen with the correct distance in relation to the beam angle of the 7 LED’s.

Optimal curing

The wavelength and amount of UV-radiation needed by the Duobond® UV-resin and Impact-filler has been the starting point of developing this UV LED-lamp. The requested low wavelength and optimal design of the power supply on the circuit board prevents any heat production. Heat production has a negative influence on the refraction index and quality of the cured UV-resin, which makes the repair more noticeable and decreases the shear strength of the repair. Heat also decreases the lifespan of a circuit board itself.

The built-in buzzer produces an audible warning when the LED UV-lamp is on. A signal sounds every ten seconds, and once the optimal curing time is due, the lamp switches off automatically and gives an audible signal repeatedly that it is ready. This limits the required amount of energy usage and loss of time for the technician as he/she is being notified on every step.

A standard 9V, 300NiMH battery can do up to 60 curings. Once the 9v battery has reached 6v the lamp stops working and can be recharged via the Duobond USB-charge cable. The USB charge cable plugs into standard 5v USB outputs and can charge starting from 5.2v back to 9v

Safe

Iris is equipped with a unique system that limits physical pressure on the crack. This prevents the glass from tearing during the repair and also ensures that the Duobond® UV resin, while not compressed, can fill the crack easily.

Includes Duobond® IQ-r 9V USB battery charge cable.

Weight: 0.74kg
